2011-2014 Ford Powerstroke 6.7L Scorpion CP4 Pump Failure / Distaster / DEF Contamination Kit – Select Pump Option

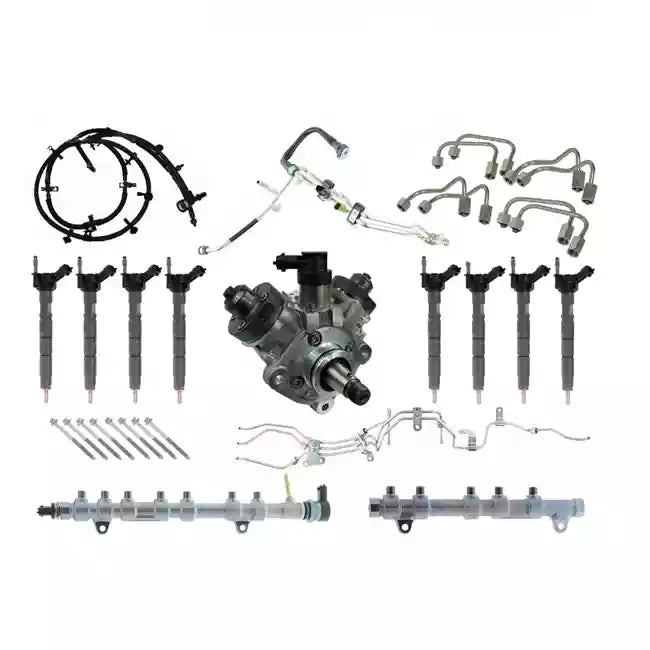

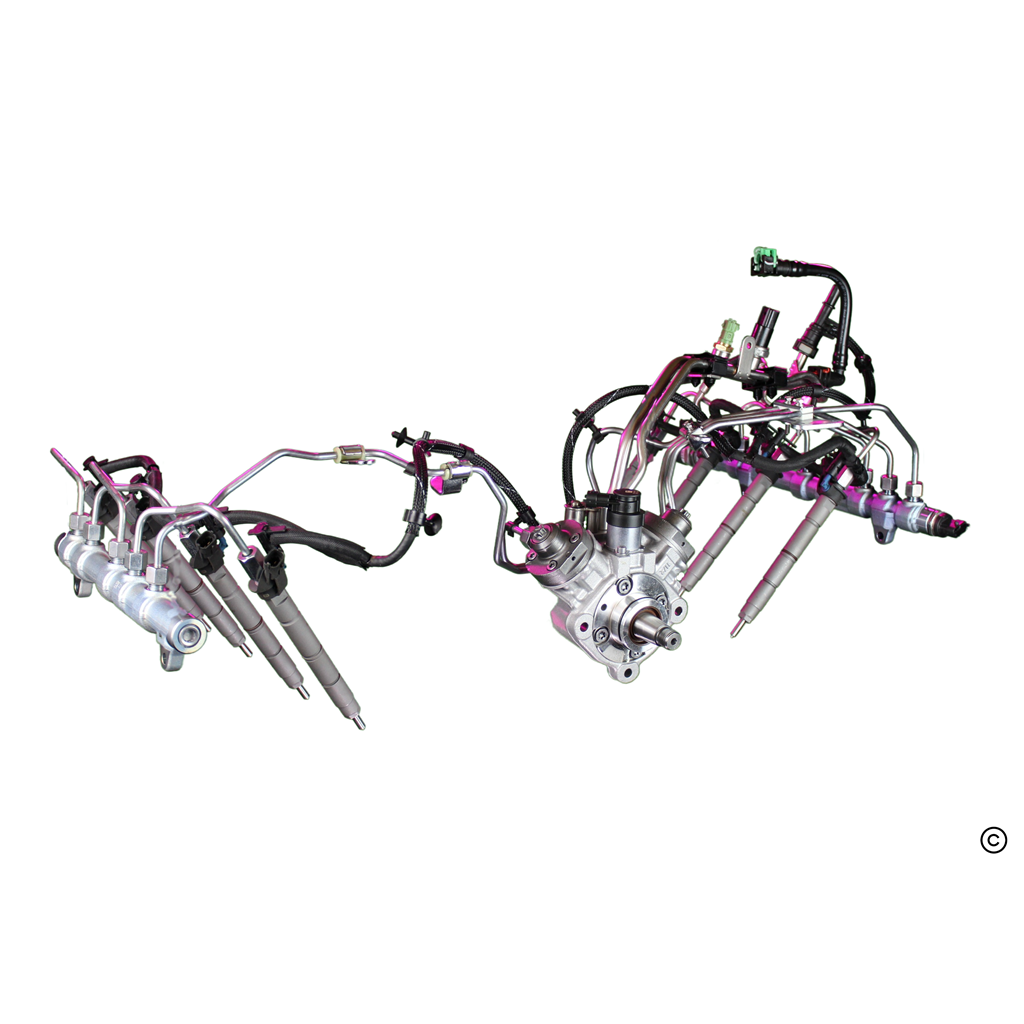

Includes:

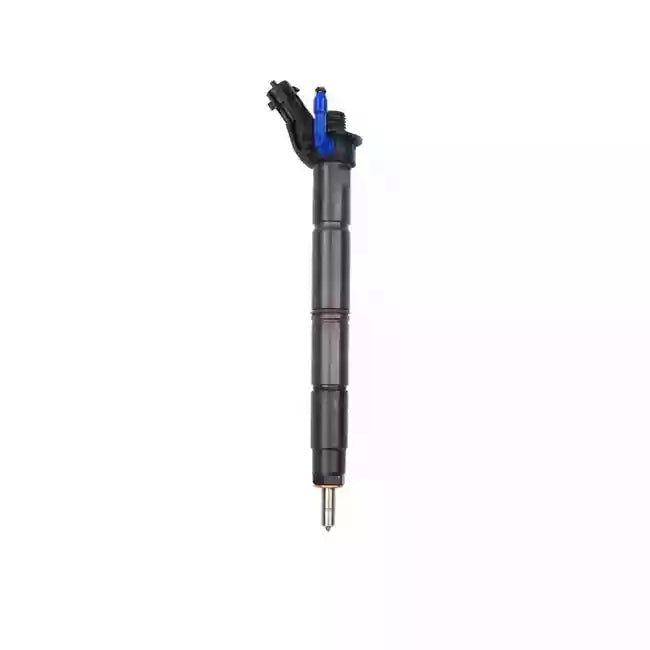

8 - Injectors

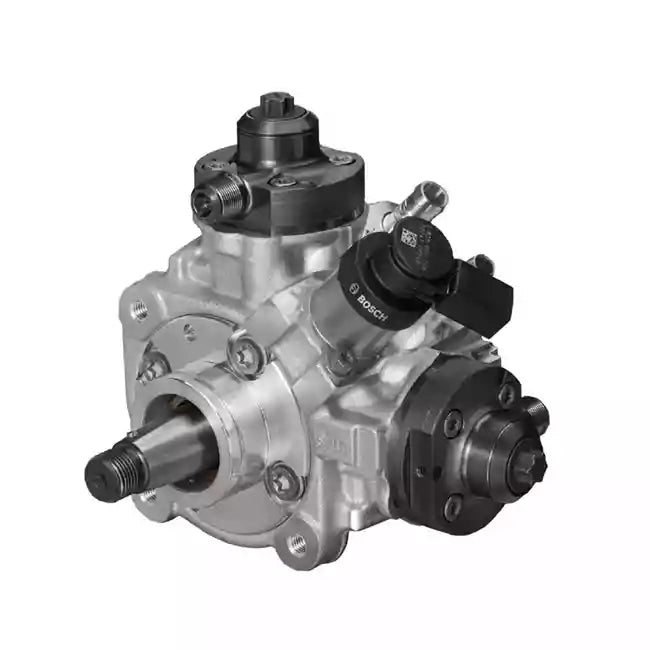

1 - CP4 Pump (if selected)

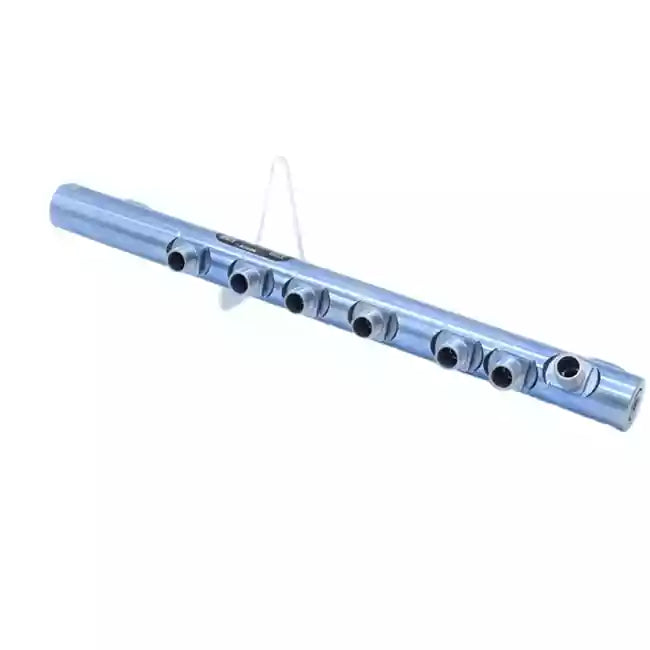

2 - Bosch Fuel Rails

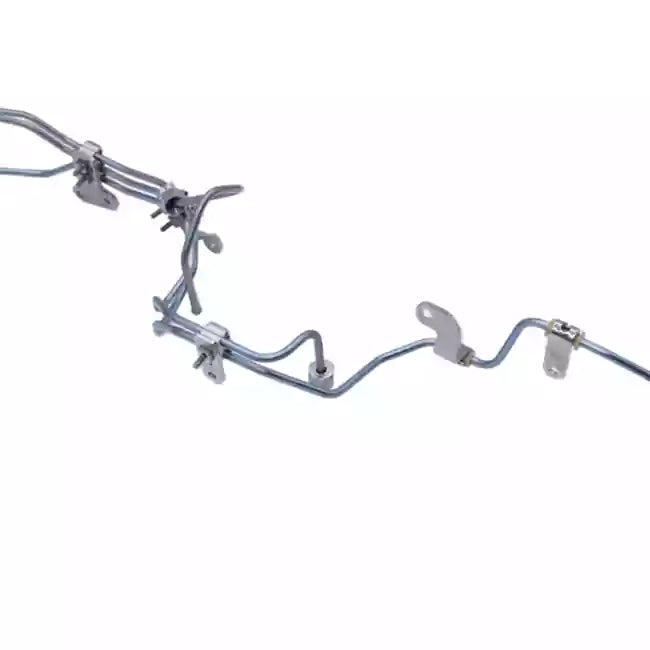

8 - High Pressure Injection Lines
1 - Return Line Assembly
8 - Injector Hold Down Bolts

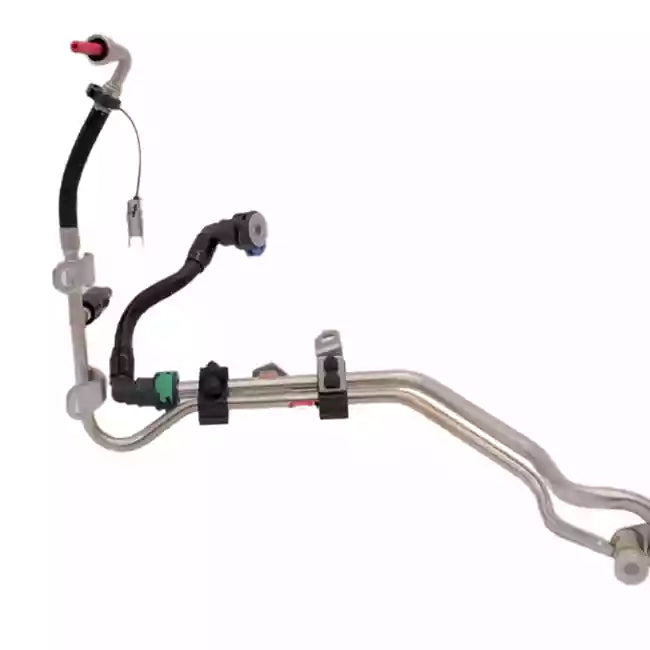

1 - Fuel Pipe Assembly
1 - High Pressure Fuel Line Assembly

Notice: Pump DOES NOT include engine mounting bracket or pump gear. These must be removed from your core pump and used to install the new pump. CP4 Mounting Plate and Pump gear are NOT included

Items required for core:
1 - Fuel pump (if selected)
8 - Fuel injectors
8 - HP fuel injector lines
2 - Fuel rail/manifold
1 - High pressure line assembly
1 - Fuel pipe assembly

Ford Kit Part #: EC3Z-9B246-A / EC3Z-9B246-B / EC3Z-9B246-C

Cross Reference/Replacement Numbers:

Motorcraft: CN6049RM Ford: KC3Z9H529ACRM
BOSCH: 0 986 435 415, 0 445 117 023, 0 445 117 024, 0 986 435 446, 0 445 010 649, 0 445 010 622, 0 445 010 851, 0 986 437 422, 0 445 010 844
Ford: BC3Z-9H529-A, BC3Z-9H529-B, BC3Z-9H529-C, BC3Z-9H529-D, BC3Q-9K546-AD, KC3J-9K546-AA, BC3Z-9A543-B, BC3Z-9A543-A, BC3Q-9B395-CB, BC3Q-9B395-CC, BC3Q-9B395-CD, BC3Q-9B395-CE
Motorcraft: CN-6025, CN-6026, CN-6049-RM

This kit is a complete repair solution for the Ford Powerstroke 6.7L Engine with CP4 fuel pump failure, DEF contamination, or water-in-fuel contamination. This kit uses premium components, identical to what you would receive if you purchased from a Ford dealership. Simply flushing the fuel system is inadequate, and could lead to residual contaminants in your fuel system.  Contamination is the number one cause of repeat injector failure. Replacing all of the fuel system components is the only way to prevent recurring contamination issues.

Key Details:

Full policies are available for review at the bottom of the page, but here are the key highlights.

• Warranty: All products include either a 1-year or 2-year warranty against manufacturing and material defects. Coverage does not apply to failures caused by installation errors, contamination, pre-existing engine conditions, misuse, or other external factors.

• Core Deposit: For items with a core requirement, we must have either the physical core items, or the associated core deposit before we ship your order. Core returns are customer-paid and must be complete, undamaged, and rebuildable. Core deposits are fully refundable within 60 days, with refunds typically processed within 10 business days of receipt.

• Shipping: Most orders ship within 48 business hours, though some items may require additional lead time. Expedited shipping applies to transit time only and does not include production or procurement time. Contact us if you need specific lead-time information.

• Returns: Most unused, non-special-order items may be returned within 30 days. Returns are subject to a minimum 15% restocking fee, excluding exchanges and store credit returns.
