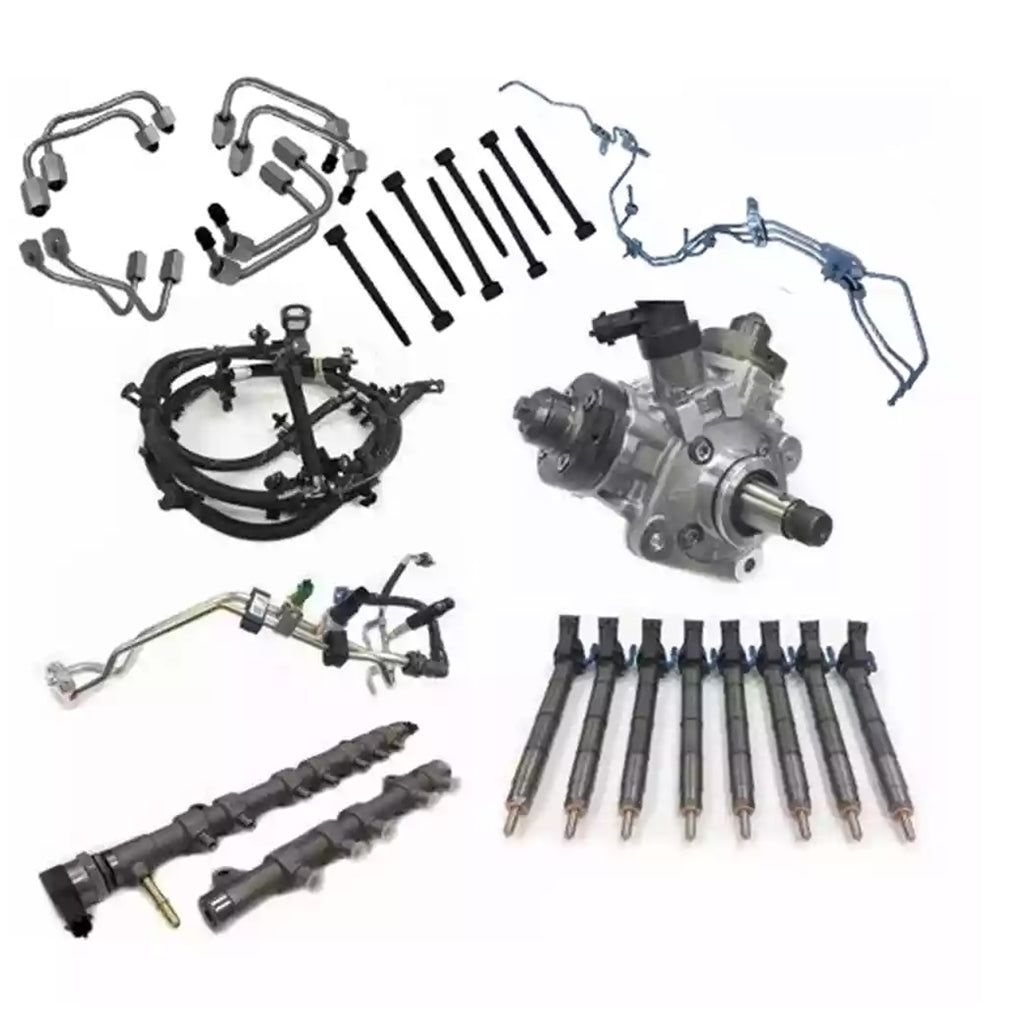

2011-2014 Ford Powerstroke 6.7L Scorpion CP4 Pump Failure / Disaster / DEF Contamination Kit - Ford / Motorcraft / Bosch OEM Remanufactured

Includes:

8 - Injectors
1 - CP4 Fuel Pump
2 - Bosch Fuel Rails
8 - Injector Fuel Lines
1 - Return Line Assembly
8 - Injector Hold Down Bolts
1 - Fuel Pipe Assembly
1 - High Pressure Fuel Line Assembly

Note: All items in kit are required for core. See breakdown below for full details:

1 - Fuel pump
8 - Fuel injectors
8 - HP fuel injector lines
2 - Fuel rail/manifold
1 - High pressure line assembly
1 - Fuel pipe assembly

Notices:
Pump DOES NOT include engine mounting bracket or pump gear. These must be removed from your core pump and used to install the new pump.

Cross Reference/Replacement Numbers:

Ford Kit Part Number:
EC3Z-9B246-A / EC3Z-9B246-B / EC3Z-9B246-C

Injectors:
Motorcraft: CN6049RM
Ford: KC3Z9H529ACRM
BOSCH: 0 986 435 415, 0 445 117 023, 0 445 117 024, 0 986 435 446
Ford: BC3Z-9H529-A, BC3Z-9H529-B, BC3Z-9H529-C, BC3Z-9H529-D, BC3Q-9K546-AD, KC3J-9K546-AA
Motorcraft: CN-6025, CN-6026, CN-6049-RM

CP4 Pump:
BOSCH:  0 445 010 649
Ford: BC3Z-9A543-B
Replaces:
BOSCH: 0 445 010 622, 0 445 010 851, 0 986 437 422, 0 445 010 844
Ford: BC3Z-9A543-A, BC3Q-9B395-CB, BC3Q-9B395-CC, BC3Q-9B395-CD, BC3Q-9B395-CE

Key Details:

Full policies are available for review at the bottom of the page, but here are the key highlights.

• Warranty: All products include either a 1-year or 2-year warranty against manufacturing and material defects. Coverage does not apply to failures caused by installation errors, contamination, pre-existing engine conditions, misuse, or other external factors.

• Core Deposit: For items with a core requirement, we must have either the physical core items, or the associated core deposit before we ship your order. Core returns are customer-paid and must be complete, undamaged, and rebuildable. Core deposits are fully refundable within 60 days, with refunds typically processed within 10 business days of receipt.

• Shipping: Most orders ship within 48 business hours, though some items may require additional lead time. Expedited shipping applies to transit time only and does not include production or procurement time. Contact us if you need specific lead-time information.

• Returns: Most unused, non-special-order items may be returned within 30 days. Returns are subject to a minimum 15% restocking fee, excluding exchanges and store credit returns.
